BLOCKS RF50
Think Bigger. Move Faster.
The Blocks RF50 is a state-of-the-art industrial 3D printer, purpose-built for rapid production of large-scale, high-precision parts. Engineered for maximum efficiency, it boasts an expansive build volume, enabling you to create intricate, sizable components faster than ever before.
Designed to excel in demanding environments, the RF50 offers unmatched durability and compatibility with a wide range of advanced materials, making it the ultimate solution for aerospace, automotive, engineering, and product design industries.
- Print Volume – 50 x 50 x 50cm / 125 liters
- High Speed – up to 600mm/s, 30 000 mm/s2 acceleration, and 25 mm3/s maximum flow rate

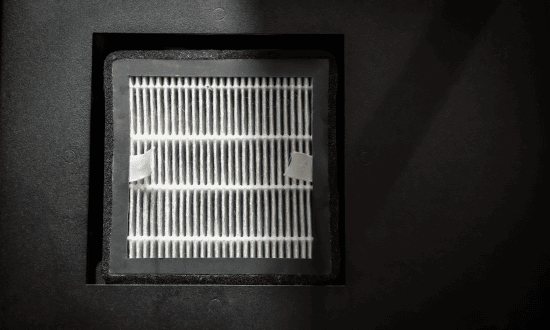

- Factory Floor Ready – Fully Closed with an Activated Carbon Filter
- Uninterrupted Production – Equipped with Safety Sensors and Industrial Components
Starts at 5 500,00 € without VAT

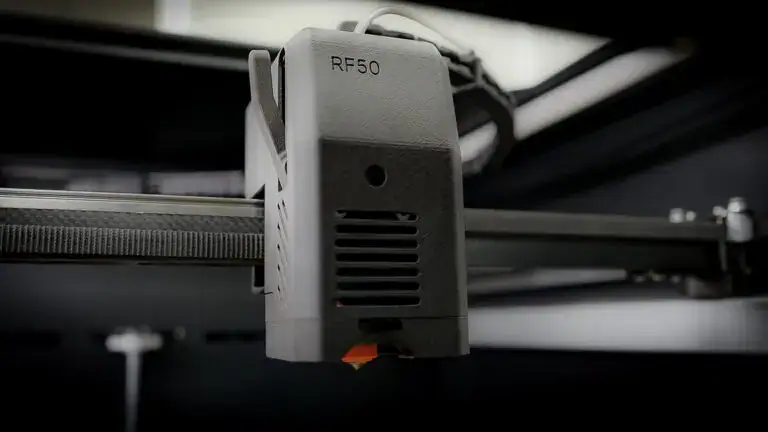

Your Productivity Ally: The RF50 Printing Head
- Print Core – high-flow, precision-engineered print cores for rapid, flawless printing.
- Active Ressonance Compensation – reduce the ringing effect to a minimum at maximum speed.
- Bondtech extruder LGX lite – full size LGX Large Gears, maintenance windows and filament tension lever with 3 presets.
- CAN bus communication – ensures seamless, synchronized 3D printing. performance.
- Filament Cutter with Filament Sensor – enables seamless material changes with ease while detecting filament cuts through the advanced filament sensor.
Advanced Build Platform: Foundation of Perfect Prints
- Auto Bed Leveling – automatic bed calibration for consistent, precise printing surface alignment.
- True Z leveling – level the whole z platform in order to reduce the deviation between every corner.
- Flexible Metal Plate – the best and easiest way to remove prints.
- Uniform Temperature Distribution – guaranted temperature across the print plate to ensure the perfect adhesion.
Think bigger!
- Model Size – 347 x 131 x 4,8 mm
- Printing Filament – PETG
- Layer Height – 0.16mm
- Total Printing Time – 6 h 34 min
- Model Weight – 188 g
Move faster!
- Model Size – 40 x 40 x 10 mm
- Number of parts – 64 units
- Printing Filament – PLA
- Layer Height – 0.2mm
- Total Printing Time – 20 h 7 min
- Printing Time per part – 18 min 54 sec
- Model Weight – 4 g
Technical Specifications
General Properties
Printing Properties
Heating Properties
Software
General Properties
- Build Volume – 500 x 500 x 500mm
- Machine Dimensions – 677 x 795 x 955mm
- Power – 24V/230 – 14 Amps
- Net Weight – 74kg
- Noise Emission – <55 dB(A) during operation
Printing Properties
- Print Technology – FFF
- Print Head System – Dual Gear Direct Drive Extruder
- Filament Diameter – 1.75mm
- Print Head Travel Speed – 600mm/s
- Print Speed – up to 600mm/s
- Build Plate – Flexible Steel Plate with PEI coating and magnetic fixation
- Build Plate Leveling – Inductive Leveling Sensor
- Supported Materials – PLA, ABS, HIPS, PC, TPU, TPE, PETG, ASA, PP, PVA, Nylon, Glass Fiber Infused, Carbon Fiber Infused, Metal Fill, Wood Fill, etc
- Layer Height – 0.01mm-0.6mm (depending on the print core installed)
- Nozzle Diameter – 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2mm
Heating Properties
- Max Build Plate Temperature – 120 ºC
- Build Plate Heating Time – <2 min to 55ºC, <6 min to 100ºC
- Max Nozzle Temperature – 320ºC
- Hotend heating time – 30 seconds to maximum temperature
Software
- Connectivity – WiFi, Ethernet, and USB
- Klipper derived firmware
- Printing profiles provided for Ultimaker Cura and Orcaslicer.
Contact Us
Our customer support is here to help and guide into purchasing the 3D printer that best fits your needs.
